High-rise buildings present unique challenges for firefighting and rescue operations. Traditional ground-based equipment often lacks the reach needed to access upper floors from the outside. This is where aerial ladder fire trucks become indispensable.

The YT25 aerial ladder fire truck, with a maximum working height of 25 meters and outreach of 15 meters, is specifically designed for such scenarios. This article explains how aerial ladder trucks perform high-rise rescue operations, using the YT25 as a technical example.

HOWO 4x2 25m aerial ladder fire rescue vehicle with CAFS

» I. What Is an Aerial Ladder Fire Truck?

An aerial ladder fire truck is a specialized fire apparatus equipped with a long extendable ladder mounted on a rotating turntable. Unlike standard pumpers, these vehicles are mobile platforms designed to project firefighters, equipment, and water to elevated heights.

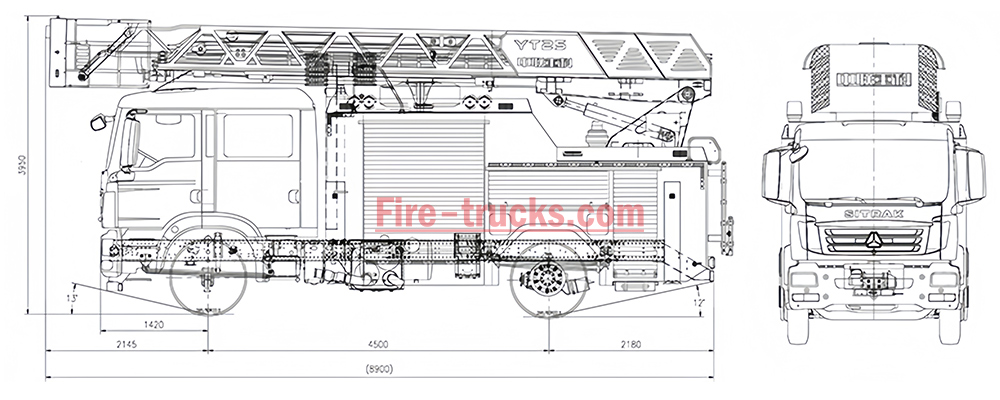

Structural Drawing of Aerial Rescue Fire Truck

Key components of the YT25 aerial ladder truck:

Component	Specification
Ladder	4-section synchronous telescoping truss ladder
Max working height	25 m
Max outreach	15 m
Platform rated load	300 kg
Turntable rotation	360° continuous
Outriggers	K-type with auto leveling

» II. How High-Rise Rescue Is Performed

High-rise rescue operations follow a structured sequence. Each step requires precise control and reliable equipment.

Step 1: Rapid Deployment and Stabilization

When a high-rise fire call is received, the aerial ladder truck responds immediately.

Positioning: The crew selects a location close to the building but clear of hazards such as power lines or unstable debris. The YT25 requires adequate clearance for safe ladder operation.

Outrigger deployment: The K-type outriggers extend to stabilize the truck. The YT25 features intelligent auto-leveling outriggers with a span of approximately 3.5 meters (width) and 4.8 meters (length). This creates a wide, stable base that prevents tipping during ladder extension.

Time required: Outrigger leveling takes ≤30 seconds (factory standard) or as fast as 24.5 seconds (tested).

Step 2: Accessing Elevated Positions

Once stabilized, the aerial device is raised and extended.

Reaching upper floors: The 4-section synchronous telescoping ladder can be extended to the desired floor. Full ladder operation takes ≤55 seconds (factory standard) or as fast as 41.8 seconds (tested). This speed is critical when every second counts.

360° rotation: The turntable allows continuous rotation, enabling the ladder to reach any direction around the truck without repositioning the vehicle.

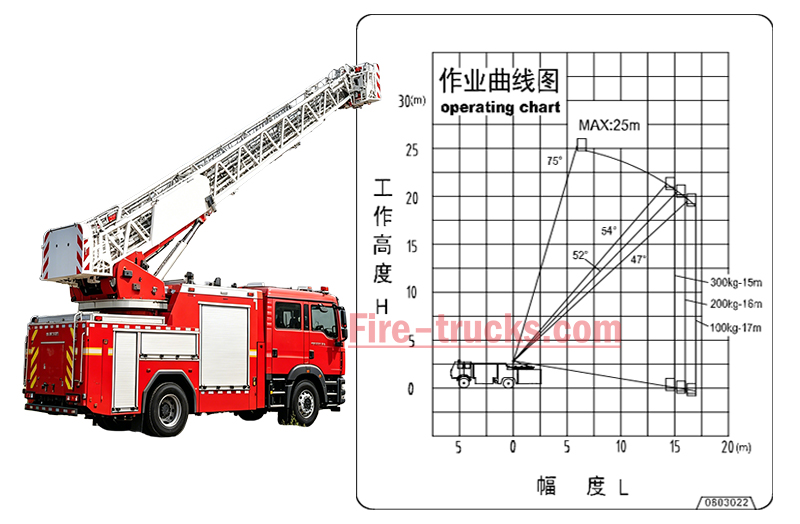

HOWO 4x2 heavy rescue aerial ladder truck for sale

Step 3: Rescuing Trapped Occupants

Elevated rescues often occur when building occupants cannot evacuate through stairwells or are trapped in smoke-filled areas.

Platform evacuation: The YT25 is equipped with a work platform (1.34 m²) rated for 300 kg. Firefighters can guide civilians into the platform and safely lower them to the ground.

The platform features:

Auto-leveling system (electro-hydraulic intelligent independent leveling)
Work lights and safety rope rings
Self-protection spray flow (≥285 L/min) to protect the platform from radiant heat

Quick access for firefighters: Firefighters can ascend rapidly to upper floors using the ladder to assist occupants, provide medical care, or create safe evacuation routes.

Step 4: Elevated Water Delivery

Beyond rescue, aerial trucks support firefighting from above.

Water at height: The YT25 can deliver 2,400 L/min at 1.2 MPa through its waterway system when the ladder is fully extended. This capability allows firefighters to apply water directly onto upper-floor fires – something ground-based hoses cannot achieve effectively due to gravity and pressure limitations.

Fire monitor: The electric-controlled monitor (ELK PSKD10/60W-7100EXM) provides:

2,400 L/min flow rate
65 m water range
Horizontal rotation, tilt, and pattern adjustment

Step 5: Ventilation and Support Roles

Aerial ladder trucks also support the broader firefighting strategy.

Ventilation assistance: Firefighters can access roofs or higher windows to perform vertical ventilation, releasing heat and smoke to improve interior conditions for other crews.

Monitoring and observation: The elevated vantage point helps commanders assess fire spread, structural integrity, and the needs of interior crews.

» III. Safety Features That Enable Rescue Operations

The YT25 is equipped with multiple safety systems that protect both firefighters and victims during high-rise operations.

Safety Feature	Function
Platform overload protection	Alarm and cut dangerous movements when load exceeds 1.1× rated
Platform tilt protection	Cut all movements when platform tilt exceeds 7°
Obstacle collision protection	Alarm and stop further approach when near obstacles
Wind speed alarm	Alarm and cut dangerous movements when wind >12.5 m/s
Slope limit	Limit outrigger movement and alarm when slope >5°
Ladder amplitude limit	Automatic slow stop near amplitude limits
Rotation cushioning	Effective cushioning on sudden stop
Interlock	Ladder cannot move without outriggers deployed
Emergency manual operation	Manual valves and emergency power unit for system failure
Water overpressure protection	Alarm and limit engine acceleration

These safety features ensure that rescue operations can proceed even in challenging conditions.

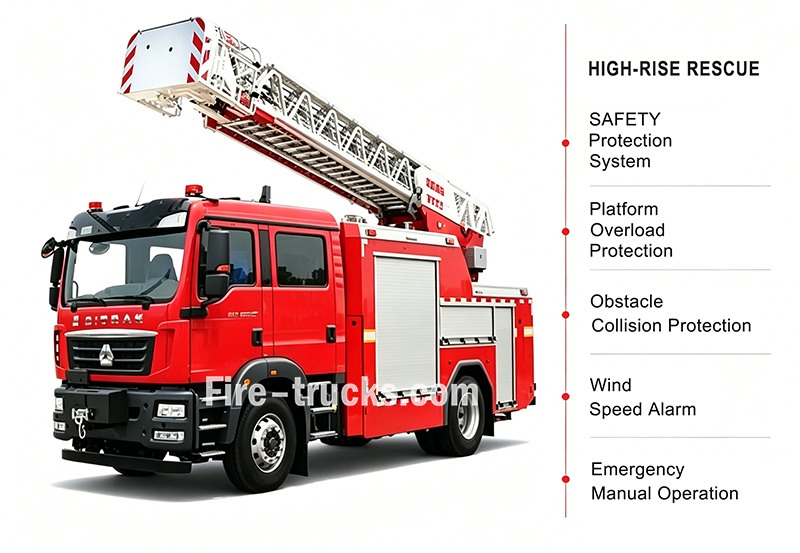

HOWO 25m aerial ladder fire fighting vehicle

» IV. Where Aerial Ladder Trucks Are Used

Aerial ladder fire trucks are critical in several environments.

Urban centers with high-rise structures: Cities with skyscrapers, residential towers, and commercial complexes rely heavily on aerial units. The YT25's 25 m working height allows access to buildings up to approximately 8-10 floors.

Industrial complexes: Refineries, chemical plants, and large warehouses benefit from aerial capabilities for elevated firefighting and rescue.

Large commercial properties: Malls, factories, and educational campuses often require aerial access for emergencies.

Suburban applications: Even in areas with fewer tall buildings, aerial trucks provide roof access and second-story rescue capabilities.

HOWO 4x2 rescue fire engine and aerial rescue platform

» V. Technical Summary of the YT25 for Rescue Operations

Parameter	Value	Significance for Rescue
Max working height	25 m	Reaches upper floors of mid-rise buildings
Max outreach	15 m	Accesses areas beyond building footprint
Platform rated load	300 kg	Can carry 2-3 people plus equipment
Full ladder operation	≤55 s	Rapid deployment saves time
Outrigger leveling	≤30 s	Quick stabilization
Max wind speed	12.5 m/s	Operates in moderate weather conditions
Self-protection spray	≥285 L/min	Protects platform from heat
Water flow at height	2,400 L/min	Effective fire suppression on upper floors

» VI. Conclusion

Aerial ladder fire trucks are among the most critical tools for high-rise rescue operations. The YT25 demonstrates how modern aerial trucks combine rapid deployment, stable outriggers, precise ladder control, and elevated water delivery to save lives.

From positioning and stabilization to accessing upper floors, rescuing trapped occupants, delivering water at height, and supporting ventilation – each step relies on integrated safety systems and reliable engineering.

Whether in dense urban centers, industrial complexes, or suburban communities, the aerial ladder fire truck extends the reach of firefighters when lives are at stake.
